In the production of pharmaceutical and pesticide intermediates, pyridine base compounds are hailed as the “chip” of the three major heterocycles, and their manufacturing process directly impacts the green development of the entire industry chain. However, in the mainstream synthetic route for pyridine bases (acetaldehyde–formaldehyde–ammonia process), the extraction stage faces severe challenges—traditional processes rely on benzene solvent extraction, which not only has limited efficiency but also generates wastewater with high pyridine and benzene content. This wastewater has a low calorific value, making incineration treatment costly, and produces large amounts of NOx and carbon emissions, creating a dual bottleneck for enterprises in both environmental compliance and cost control.
Industry Challenge: Environmental Pain Points in Pyridine Base Production
In the current mainstream pyridine base production process, the benzene extraction stage faces three major persistent issues:
1.Low extraction efficiency: Static extraction equipment requires long residence times, resulting in insufficient pyridine recovery.
2.High wastewater treatment costs: Residual benzene and pyridine lead to high fuel consumption during incineration treatment.
3.Environmental compliance risks: NOx and carbon emission problems are becoming increasingly prominent.
Production data from a leading enterprise shows that the traditional process consumes 0.8 tons of fuel oil per ton of pyridine synthesis solution for wastewater incineration, with annual treatment costs exceeding 20 million yuan. What’s more challenging is that, as environmental standards tighten, emission levels have already approached the regulatory red line.
Technological Breakthrough: Three Major Innovations of the CWL-M Centrifugal Extraction Process Equipment

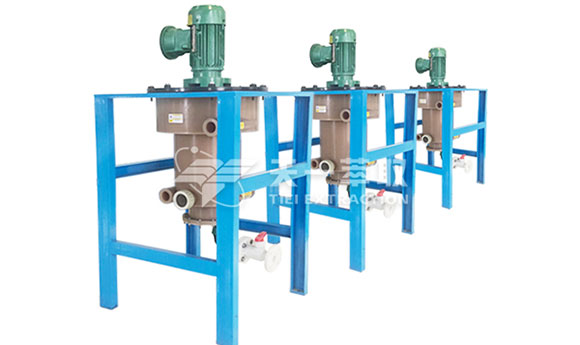

Developed by Zhengzhou Tiei Extraction, the CWL-M centrifugal extraction process equipment achieves process innovation through technological advancements:
- Leap in Mass Transfer Efficiency
Utilizes a high-speed centrifugal force field to reduce two-phase contact time by 80%.
Specially designed mixing chamber boosts mass transfer efficiency to 5–8 times that of traditional equipment.
Field tests show that single-stage extraction efficiency can reach over 92%. - Optimized Process Configuration
Proprietary two-stage countercurrent extraction design reduces pyridine residue to below 500 mg/L.
Intelligent flow control system ensures an optimal benzene-to-synthesis-solution ratio of 1:1.
Modular structure supports rapid capacity expansion. - Significant Environmental Benefits
Wastewater benzene content ≤ 1500 mg/m³, meeting biochemical treatment requirements directly.
Compared with incineration treatment, carbon emissions are reduced by over 85%.
Annual fuel cost savings exceed 18 million yuan (based on 100,000-ton/year capacity).
Case Study
After upgrading its process with the CWL-M centrifugal extractor, a pharmaceutical company in Jiangsu achieved:
An increase in pyridine recovery rate from 83% to 96.5%.
A reduction in wastewater treatment cost from 280 yuan/ton to 45 yuan/ton.
An annual increase in economic benefits of 22 million yuan.
“The most unexpected advantage is the level of automation,” said the company’s Technical Director. “We can now monitor extraction efficiency in real time via a mobile phone, and the system can automatically optimize rotational speed parameters.”
Technology Extension: Broader Applications in Pharmaceutical Intermediates and Pesticide APIs
The technical advantages of the CWL-M are not limited to pyridine base production:
Pharmaceutical intermediates: Extraction of quinoline and indole compounds.
Pesticide active ingredients: Purification of pyrethroids and neonicotinoids.
Electronic chemicals: Recovery and reuse of high-purity solvents.
In today’s increasingly stringent environmental landscape, the CWL-M centrifugal extractor is driving pyridine base production toward greener and smarter transformation through technological innovation. For chemical enterprises seeking breakthroughs, this is not just an equipment upgrade—it is a strategic choice to secure future competitiveness.
