In many industrial fields such as chemical processing, pharmaceuticals, environmental protection, and hydrometallurgy, liquid liquid extraction is a core technology for separation and purification. Its efficiency and economic performance directly influence the overall competitiveness of production lines. Traditional equipment, such as mixer–settlers, often suffers from limitations including low efficiency, high energy consumption, and large footprint. Today, an innovative solution centered on countercurrent extraction processes and combined with Tiei Extraction CWL-M series Centrifugal Extractor is bringing a new era of high-efficiency separation to the industry.

Countercurrent Extraction: Principles and Outstanding Advantages

Countercurrent extraction is a separation method in which two phases (typically an aqueous phase and an organic phase) flow continuously in opposite directions and come into full contact with each other. Compared with single-stage or cross-current extraction, its key advantages include:

1.High recovery rate and high purity
Through multi-stage series extraction, extraction rates and product purity far exceeding those of single-stage extraction can be achieved.

2.Maximum utilization of extractants
Fresh extractant first contacts the liquid phase that is already close to extraction equilibrium, while the extractant about to be discharged comes into contact with fresh feed solution. This stepwise utilization fully exploits the solvent’s dissolving capacity, significantly reducing solvent consumption and operating costs.

3.Continuous and automated operation
Countercurrent extraction is well suited for fully continuous processing with stable throughput, making it ideal for large-scale, automated modern industrial production.

4.Reduced wastewater discharge
More complete extraction results in extremely low concentrations of target components in the raffinate, easing the burden of downstream wastewater treatment and delivering greater environmental benefits.

However, the efficient implementation of countercurrent extraction relies heavily on core equipment capable of rapid and thorough mixing, as well as efficient and stable phase separation. This is precisely where traditional mixer–settlers or extraction columns reach their limitations: they are typically bulky, require long residence times, exhibit slow phase separation, and are prone to issues such as emulsification and solvent loss.

CWL-M Centrifugal Extractor: A High-Efficiency Engine for Countercurrent Extraction

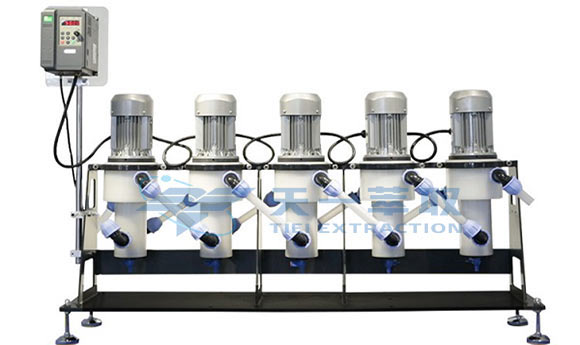

Tiei Extraction CWL-M series centrifugal extractor is a precision-engineered equipment specifically designed to achieve highly efficient countercurrent extraction. It ingeniously integrates the two critical steps of mixing and mass transfer with centrifugal phase separation into a single piece of equipment. Its key advantages include:

1.Ultra-efficient mass transfer and rapid phase separation
The high-speed rotating drum generates powerful centrifugal force, causing the two liquid phases to mix instantaneously and uniformly under high shear, achieving rapid mass transfer. Subsequently, the phases are quickly and thoroughly separated in the centrifugal force field, demonstrating excellent performance even for systems that are prone to emulsification or have similar densities.

2.Efficient countercurrent integration
A single equipment is equivalent to multiple theoretical extraction stages. Through unique internal flow channel design or external piping connections, multi-stage countercurrent extraction circuits can be configured easily and flexibly, with a footprint only a fraction of that required by traditional equipment.

3.Economical and reliable operation
The fully enclosed design eliminates solvent evaporation and leakage, ensuring operational safety and a clean working environment. A high degree of automation enables simple and stable operation. In addition, the small holdup volume and short residence time make the system particularly suitable for processing valuable materials or thermally and chemically unstable substances.

4.Multiple material options and wide applicability
Depending on process requirements—such as corrosiveness or hygienic standards—the equipment can be manufactured from stainless steel, Hastelloy, titanium, or lined with special plastics. This versatility allows it to meet the stringent demands of pharmaceutical production, highly corrosive operating environments.

Broad Applications Empowering Diverse Industries

With its outstanding performance, the CWL-M centrifugal extractor has become a preferred solution for upgrading extraction processes across a wide range of industries:
1.Hydrometallurgy: Efficient separation and enrichment of metals such as copper, cobalt, and nickel, delivering high recovery rates and high product purity.
2.Pharmaceuticals and biopharmaceuticals: Applied to the extraction and purification of antibiotics, vitamins, and chiral pharmaceutical intermediates, in compliance with GMP requirements.
3.Wastewater treatment and resource recovery: Enables efficient recovery of valuable metals—including vanadium, tungsten, and molybdenum—from electroplating, mining, and chemical wastewater, while achieving advanced wastewater purification.
4.Fine chemicals and advanced materials: Used in precise separation processes such as fragrance purification, phosphoric acid purification, and the production of lithium battery materials.

Countercurrent extraction represents an advanced direction in the evolution of extraction technology, and the Tiei Extraction CWL-M centrifugal extractor provides a powerful, reliable, and highly efficient physical platform for its implementation. It is not only an effective solution to the limitations of traditional separation equipment, but also a key asset for enterprises seeking to enhance product quality, reduce operating costs, and achieve green, sustainable development.
