For aniline manufacturers, wastewater treatment is not only a necessary step to comply with environmental regulations but also a potentially overlooked source of value. Aniline production wastewater typically contains a certain concentration of nitrobenzene—a chemical intermediate widely used in the production of dyes, pesticides, rubber additives, and other chemical products. By effectively recovering and purifying nitrobenzene, companies can not only significantly reduce the burden of wastewater treatment but also generate considerable economic returns.

How can nitrobenzene be recovered efficiently, stably, and cost-effectively? Liquid-liquid extraction technology has become the preferred solution for an increasing number of chemical enterprises worldwide, and the core equipment—the CWL-M Series Centrifugal Extractor—is the key to achieving efficient operation of this process.

Nitrobenzene Recovery Process

The recovery of nitrobenzene from aniline wastewater using liquid-liquid extraction generally follows the process below:

1.Wastewater Pretreatment
Suspended solids, oils, and other solid impurities are removed from the wastewater to ensure the stable operation of the extraction system.

2.Extraction Stage
The pretreated wastewater and the selected extractant (such as toluene, benzene, or specially formulated composite solvents) are fed into the CWL-M Centrifugal Extractor at a predetermined phase ratio. Under the high centrifugal force generated by the rotating drum, the two liquid phases are rapidly mixed to achieve efficient mass transfer, allowing nitrobenzene to be transferred from the aqueous phase into the organic phase.

3.Phase Separation and Solvent Regeneration
After extraction, the organic phase containing nitrobenzene and the raffinate aqueous phase are clearly separated under centrifugal force. The organic phase is then sent to subsequent distillation or stripping units, where the extractant is recovered and crude nitrobenzene is obtained. The raffinate proceeds to the downstream wastewater treatment system.

4.Solvent Recycling
The recovered extractant is returned to the extraction process for reuse, resulting in extremely low solvent consumption.

CWL-M Centrifugal Extractor: The Core of the Process

The CWL-M Series Centrifugal Extractor is a new-generation liquid-liquid extraction and separation equipment independently developed by Zhengzhou Tiei Extraction. It is specifically designed for the recovery of valuable substances from chemical wastewater. In aniline wastewater treatment applications, its outstanding advantages include the following:

1.High Extraction Efficiency for Maximum Recovery
The CWL-M Centrifugal Extractor can be configured in multi-stage counter-current or co-current arrangements, allowing the number of stages to be flexibly adjusted according to actual wastewater conditions. With its high-intensity centrifugal force field, the equipment provides thorough contact between the two liquid phases, achieving a single-stage extraction efficiency of over 95%, thereby maximizing nitrobenzene recovery.

2.Excellent Adaptability to Harsh Operating Conditions
Aniline wastewater is often corrosive, at elevated temperatures, or contains small amounts of solid impurities. The CWL-M Centrifugal Extractor is manufactured from high-quality corrosion-resistant materials such as 316L stainless steel, duplex stainless steel, and titanium, featuring a robust structural design and optimized clearance between the impeller and housing to minimize clogging and extend maintenance intervals.

3.Fully Enclosed Operation for Safety and Environmental Protection
The CWL-M Centrifugal Extractor operates in a fully sealed system, effectively preventing extractant volatilization and leakage. This not only enhances operator safety but also minimizes VOC emissions, helping facilities comply with internationally recognized environmental management standards.

4.Intelligent Automation to Reduce Labor Costs
Equipped with an intelligent control system, the CWL-M Centrifugal Extractor can automatically adjust operating parameters such as rotational speed, flow rate, and phase ratio in real time. Remote monitoring and automatic process control enable the system to accommodate fluctuations in wastewater composition from different production batches.

5.Compact Footprint and Low Energy Consumption
Compared with traditional mixer settlers or extraction columns, the CWL-M Centrifugal Extractor occupies significantly less floor space and requires lower power consumption per unit of processing capacity. It is particularly suitable for facilities with limited installation space or those requiring modular capacity expansion.

Application

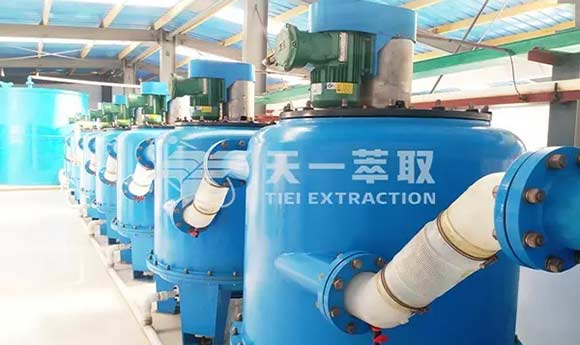

An aniline manufacturing company adopted centrifugal extraction technology to treat its production wastewater. Practical application has demonstrated that the process can typically achieve a nitrobenzene recovery rate of 90%–98%, while the recovered product meets industrial-grade purity requirements. Extractant consumption remains at a very low level, and the overall operating cost is significantly lower than that of traditional distillation or adsorption processes.

More importantly, the recovered nitrobenzene can be reused internally or sold as a commercial product, generating direct revenue for the enterprise and transforming wastewater treatment costs into a source of profit.

Conclusion

As the chemical industry continues to pursue greener, more efficient, and more sustainable development, recovering nitrobenzene from aniline wastewater is no longer simply an environmental obligation—it has become an important part of a company's competitive advantage. With its outstanding extraction performance, reliable operating stability, and flexible application capability, the CWL-M Series Centrifugal Extractor has become a trusted technological solution for nitrobenzene recovery.

If you are looking for a reliable nitrobenzene recovery solution or seeking to improve the efficiency of your existing extraction process, please feel free to contact Zhengzhou Tiei Extraction. Our engineering team is ready to provide professional technical evaluation and customized equipment recommendations tailored to your specific application.
