In fine chemical synthesis processes, extraction and washing (including water washing and alkali washing) are critical steps for removing solvents and byproduct salts from reaction mixtures. However, many companies still rely on traditional stirred tanks with static separation, which suffer from low separation efficiency and long settling times. These limitations significantly slow down downstream processing, resulting in low automation, extended process cycles, high wastewater generation, and increased direct costs—forming a bottleneck that constrains manufacturing advancement.

In response to the urgent demand for continuous production in modern chemical plants, three mainstream liquid–liquid extraction technologies—mixer settler, extraction column, and Zhengzhou Tiei’s CWL-M centrifugal extractor—pose a key question: which truly represents the future of extraction, and where do their differences lie?

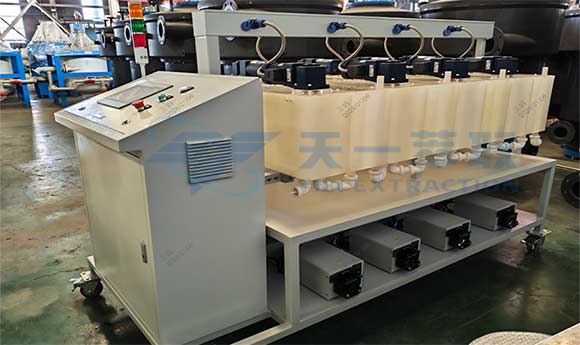

Mixer Settler

As the most traditional extraction equipment, the mixer settler relies on gravity settling to achieve phase separation. After mixing and mass transfer in the mixing chamber, the mixture flows into the settling chamber to settle and separate. Its advantages include simple structure and stable operation; however, it suffers from low stage efficiency, large footprint, high solvent hold-up, and batch operation, making it difficult to meet the demands of continuous production.

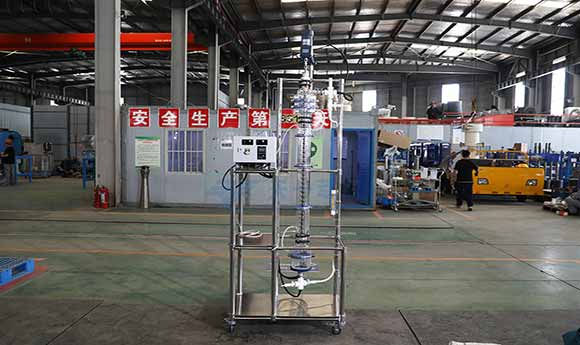

Extraction Column

Extraction column achieves counter-current contact between two phases driven by density differences, completing mass transfer and separation within the column. While column equipment can operate continuously, it is prone to axial back-mixing, which reduces mass transfer efficiency. In addition, flow rates inside the column are limited, making it difficult to increase processing capacity, and systems sensitive to interfacial conditions are prone to emulsification.

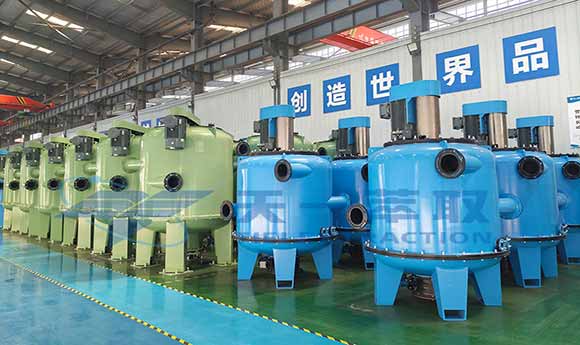

CWL-M Centrifugal Extractor

The CWL-M series centrifugal extractor, developed by Zhengzhou Tiei Extraction Technology Co., represents an innovative direction in extraction equipment. It uses the centrifugal force generated by high-speed rotation to achieve both liquid–liquid contact and phase separation, integrating mixing and separation in a single unit. The mixing occurs in the gap between a stationary outer cylinder and a high-speed rotating inner cylinder, while separation is completed instantly within the drum. The interface can be precisely adjusted using the weir control system.

Four-Dimensional Comparison: Comprehensive Performance Upgrade with Centrifugal Extractor

1.Volume Efficiency
The CWL-M centrifugal extractor offers exceptionally high volume efficiency—30 to 50 times that of a conventional mixer settler. For the same processing capacity, the equipment footprint is drastically reduced, significantly improving workshop space utilization.
2.Hold-Up Volume
Thanks to its superior phase separation capability, the CWL-M centrifugal extractor requires much less internal hold-up than mixer settlers or extraction columns for the same output. This enables rapid material switching and is ideal for multi-product production.
3.Mass Transfer Efficiency
The CWL-M centrifugal extractor achieves stage efficiencies of over 99%, ensuring complete and stable mass transfer. In contrast, extraction columns are prone to axial back-mixing, where already-transferred components are reintroduced, reducing overall efficiency.
4.Residence Time
The CWL-M centrifugal extractor maintains residence times from a few seconds up to tens of seconds, minimizing thermal exposure—perfect for heat-sensitive systems. Mixer settlers and extraction columns, by comparison, have residence times measured in hours, resulting in a significant efficiency gap.

Application Value: From Batch to Continuous Production

Applying the CWL-M centrifugal extractor to extraction and washing steps in nitration, synthesis, and other chemical processes can completely transform traditional batch operations, enabling fully continuous production. The significant improvement in separation efficiency not only shortens production cycles and reduces wastewater generation but also drives chemical equipment toward greater sophistication and automation.

Currently, the liquid–liquid extraction equipment developed and manufactured by Zhengzhou Tiei—based on centrifugal extraction technology—has been widely applied in industries such as chemicals, pharmaceuticals, metallurgy, wastewater treatment, and petrochemicals, making it the preferred alternative to traditional extraction equipment.
