In industries such as fine chemicals, pharmaceutical intermediates, and new energy materials, three-stage countercurrent washing has become a mainstream process choice due to its advantages of high washing efficiency, improved water utilization, and thorough impurity removal. Its core objective is to gradually reduce impurities, salts, and residual reactants in the organic phase through multi-stage countercurrent washing, thereby ensuring product purity and production compliance.
However, for many years, achieving this goal has been hindered by traditional equipment — with large footprints, high energy consumption, and low efficiency becoming major obstacles to capacity expansion and environmental upgrades.
Traditional Reactors: Dragging Down Your Washing Section
For a long time, reactors have dominated the entire process of mixing, reaction, and separation in washing operations. Yet as production capacity expands and environmental regulations become increasingly stringent, their inherent disadvantages are becoming more apparent:
1.Batch operation mode makes continuous feeding and discharging impossible, resulting in low production efficiency
2.Insufficient mixing leads to unstable washing performance and fluctuating impurity residues
3.Long settling and phase separation times require larger equipment volumes and significantly more plant space
4.High energy consumption due to continuous motor operation, along with substantial losses of washing water and solvents caused by entrainment
5.Poor sealing performance can easily result in fugitive VOC emissions, increasing environmental compliance pressure
Clearly, traditional reactors are no longer able to meet the growing demands for continuous, intelligent, and environmentally friendly production.

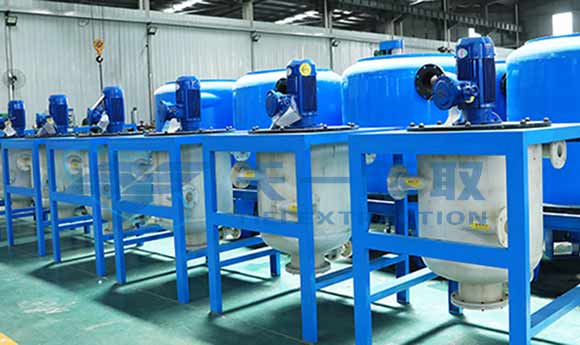

CWL-M Centrifugal Extractor: A Tailor-Made Upgrade Solution for Three-Stage Countercurrent Washing
To address the challenges mentioned above, the CWL-M series centrifugal extractor—independently developed by Zhengzhou Tiei Extraction—precisely resolves these challenges. Leveraging core technological advantages such as high-speed centrifugal mass transfer enhancement, continuous operation, and enclosed safety, it stands as the ideal choice for the upgrading and modernization of chemical washing sections.
Three Core Advantages That Directly Solve Process Bottlenecks
1.Significant Space Savings — Equipment Footprint Reduced to Just 1/5 of Traditional Reactors
The CWL-M centrifugal extractor adopts a vertical integrated structure with a compact footprint, making multi-layer installation easy to achieve.
A complete three-stage countercurrent washing system requires only a few square meters of floor space, freeing up valuable plant area for future production expansion.
2.Remarkably Lower Energy Consumption — Power Consumption per Unit Throughput Reduced by 40%–60%
The CWL-M centrifugal extractor utilizes high-speed centrifugal force to achieve rapid phase separation within seconds, replacing traditional gravity settling processes that may require tens of minutes or even hours.
With lower motor power requirements, high operational efficiency, and precise control of phase ratio and flow rate, the system significantly reduces energy consumption per ton of processed material.
At the same time, solvent entrainment losses are minimized and washing water consumption is reduced, leading to substantially lower overall operating costs.
3.Continuous, Enclosed, and Automated Operation — Eliminating Batch Fluctuations and Environmental Risks
The CWL-M centrifugal extractor enables continuous feeding, mixing, separation, and discharge, allowing seamless integration with upstream and downstream DCS control systems for stable 24-hour operation.
Its fully enclosed structure prevents leakage, dripping, and fugitive emissions, effectively controlling VOC emissions and meeting the strict environmental and safety standards required by the fine chemical and pharmaceutical industries.
The heavy phase and light phase are discharged independently, ensuring stable washing performance and consistent product purity.
Perfectly suited for three-stage countercurrent and multi-stage washing processes, the CWL-M centrifugal extractor not only enables efficient three-stage countercurrent water washing — where the organic phase and aqueous phase flow in opposite directions for stepwise mass transfer — but can also be flexibly configured into multi-stage processes such as continuous water washing + alkaline washing + water washing, meeting different product purity standards and impurity removal requirements.
Typical Application Scenarios
Acid/alkaline washing, decolorization, and desalting after pharmaceutical intermediate synthesis
High-purity purification of new energy materials such as lithium battery solvents and precursor materials
Multi-stage extraction washing for trace impurity removal in fine chemical products
Practical Value: From Process Upgrades to Profitability Improvements
By replacing traditional reactors with the CWL-M centrifugal extractor for three-stage countercurrent washing, companies can achieve immediate benefits:
1.Higher Production Capacity: Transition from batch processing to continuous operation, significantly increasing throughput per unit time.
2.Lower Operating Costs: Reduced water, electricity, and solvent consumption, along with lower wastewater and waste treatment expenses.
3.Stable Product Quality: Consistent washing performance with minimal fluctuations in product purity.
4.Environmental Compliance: Fully enclosed operation reduces exhaust emissions and helps companies easily meet environmental inspection requirements.
5.Intelligent Process Control: Can be integrated into industrial IoT systems for remote operation, maintenance, and process optimization.
Founded with over a decade of experience in liquid-liquid extraction equipment R&D and engineering applications, Zhengzhou Tiei Extraction Technology Co., Ltd. has successfully applied its CWL-M series centrifugal extractors in hundreds of projects across industries such as chemicals, pharmaceuticals, hydrometallurgy, and environmental protection.
If you are struggling with the large footprint, high energy consumption, and low efficiency of traditional washing equipment, contact Zhengzhou Tiei Extraction Technology Co., Ltd. to obtain a customized upgrade solution.
