With the rapid development of modern industries, sectors such as textiles, dyeing, steel smelting, and non-ferrous metal processing generate large volumes of manganese-containing wastewater during production. Manganese, as a typical heavy metal pollutant, can cause serious environmental and health issues if discharged untreated.

Traditional chemical precipitation methods often face challenges such as high sludge production, unstable effluent quality, and the inability to recover valuable metals. In contrast, solvent extraction is emerging as a mainstream technology for advanced treatment of manganese-containing wastewater due to its high efficiency, selectivity, and potential for resource recovery. As the core equipment for solvent extraction, Zhengzhou Tiei’s CWL-M series centrifugal extractor offers outstanding performance, providing a novel solution for manganese wastewater treatment.

Why choose solvent extraction for treating manganese-containing wastewater?

The solvent extraction method utilizes the complexation reaction between manganese ions and specific extractants to efficiently transfer manganese ions from the aqueous phase into the organic phase, thereby achieving the purification of the wastewater and the resource-oriented enrichment of manganese.

Compared with traditional precipitation methods, solvent extraction offers the following advantages:

1.High selectivity: By optimizing the extractant formulation and extraction conditions, manganese ions can be effectively separated from impurity ions such as calcium, magnesium, and sodium.
2.Stable effluent quality: Unaffected by fluctuations in influent concentration, the treated effluent consistently maintains a manganese content below national discharge limits, and can even meet drinking water quality standards (<0.1 mg/L).
3.Resource recovery: Converts wastewater “pollutants” into high-purity manganese sulfate solution or electrolytic manganese materials, turning waste into valuable resources and generating secondary economic benefits.

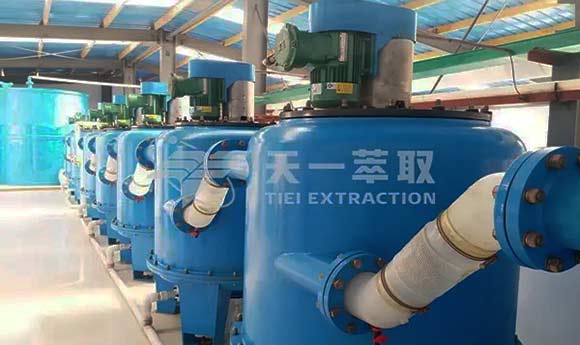

CWL-M Centrifugal Extractor: The “Core Engine” for Manganese-Containing Wastewater Treatment

In solvent extraction processes, the efficiency of mixing and separation directly determines both system operating costs and effluent quality. The CWL-M series centrifugal extractor, independently developed by Zhengzhou Tiei Extraction, is a novel automated equipment integrating mixing, reaction, and separation. By generating a powerful centrifugal field through high-speed rotation, it significantly enhances mass transfer between the two liquid phases.

Process Flow for Manganese-Containing Wastewater Treatment

In a manganese wastewater treatment system, the CWL-M centrifugal extractor typically operates in a multi-stage countercurrent extraction process:

Extraction Stage
Manganese-containing wastewater (aqueous phase) and the extractant (organic phase) enter the centrifugal extractor. Under the action of the high-speed rotating rotor, the two phases are intensely sheared and mixed, forming fine droplets and greatly increasing the interfacial area. Manganese ions rapidly transfer from the aqueous phase to the organic phase, completing the extraction reaction. Subsequently, the loaded organic phase (containing manganese) and the purified aqueous phase (raffinate) are instantaneously separated by centrifugal force. The raffinate can be directly discharged to meet standards or recycled.

Scrubbing Stage
The loaded organic phase enters the scrubbing stage, where dilute acid or pure water removes co-extracted impurity ions, enhancing the purity of the final product.

Stripping Stage
The purified loaded organic phase is mixed with a stripping agent (such as dilute sulfuric acid) in the centrifugal extractor. During this reverse reaction, manganese ions transfer back from the organic phase to the aqueous phase, yielding a high-concentration, pure manganese sulfate solution. The regenerated organic phase is returned to the extraction stage for reuse, achieving zero-discharge operation of the extractant.

Core Advantages of the CWL-M Centrifugal Extractor

Designed for the complex water quality, large treatment volumes, and variable site conditions of manganese-containing wastewater, the CWL-M series centrifugal extractor demonstrates unparalleled performance:

1.Ultra-Short Stage Residence Time, High Mass Transfer Efficiency
The compact design of the mixing and separation zones ensures that the liquid typically remains in the machine for only 30–60 seconds. This significantly reduces the contact time between the extractant and wastewater, preventing emulsion formation or degradation of the extractant when exposed to strongly acidic or high-salinity wastewater. As a result, extraction efficiency remains stable above 95%.

2.Rapid Phase Separation
Traditional mixer settlers rely on gravity for phase separation, requiring large floor space and often generating emulsions or a “third phase.” The CWL-M centrifugal extractor uses centrifugal forces up to several thousand times gravity to achieve rapid separation. The aqueous effluent is free of suspended solids, and the organic phase carries minimal entrainment. This not only saves on plant construction costs but also fundamentally solves the emulsification problems common in conventional processes.

3.Fully Enclosed Automation for Environmental Safety
The fully enclosed structure effectively prevents the volatilization of organic solvents (extractants and diluents), significantly improving workplace safety. Equipped with an automated control system, the CWL-M centrifugal extactor can perform feeding, mixing, separation, and slag discharge fully automatically, greatly reducing labor intensity and human error.

4.Reduced Capital and Operating Costs
Capital investment: Compared with traditional mixer settlers, the CWL-M centrifugal extactor occupies less space, has lower civil construction requirements, and eliminates the need for large clarifiers, reducing total investment by 30–40%.
Operating costs: Thorough phase separation minimizes extractant loss, saving on solvent recovery and regeneration costs. The equipment also features low energy consumption and easy maintenance, ensuring significant long-term economic benefits.

The treatment of industrial wastewater is no longer merely a cost center for “compliance discharge”, it is increasingly becoming a value center for “resource recovery.” Leveraging over a decade of expertise in liquid–liquid extraction, Zhengzhou Tiei Extraction, with the CWL-M centrifugal extractor at its core, provides efficient, energy-saving, and automated solutions for the treatment of manganese-containing and other heavy metal wastewater. We are committed to helping our clients achieve both environmental compliance and economic benefits through technological innovation.
If you are facing challenges in wastewater treatment, welcome to contact Zhengzhou Tiei Extraction.
