With the rapid replacement and upgrading of electronic products worldwide, waste printed circuit boards (PCBs) have become one of the fastest-growing components of electronic waste. These discarded boards contain not only non-metallic materials such as resins and fiberglass, but also a large amount of valuable metals—including base metals such as copper, tin, and lead, as well as precious metals such as gold, silver, and palladium. In fact, the metal grades in PCBs are often much higher than those found in natural ores. Especially in terms of copper content, waste PCBs can be regarded as a “mobile urban mine.”
From the dual perspectives of resource recycling and environmental protection, how to efficiently and cleanly recover these valuable metals, especially high-value precious metals, has become a major research focus in the field of global electronic waste recycling. Among various recycling technologies, hydrometallurgical processes have gradually become a mainstream choice due to their advantages of high metal recovery rates, relatively low energy consumption, and controllable exhaust emissions.
The Core Challenges of Hydrometallurgical Recycling
The hydrometallurgical recycling process includes several steps, such as crushing and separation, acidic leaching, solution purification, and metal extraction. Among these steps, solvent extraction is the key process that determines the final product quality and recovery efficiency. Through the use of selective extractants, target metal ions such as copper and precious metals in the leachate can be effectively separated from impurities such as iron and aluminum. After stripping and electrowinning, high-purity cathode copper or other metal products can be obtained.
However, traditional extraction equipment, such as mixer settlers and extraction columns, often faces challenges including severe emulsification, slow phase separation, and limited operational flexibility. Especially when dealing with complex leach solutions containing high levels of suspended solids, extraction efficiency can be significantly reduced, seriously affecting the purity of downstream metal products. Therefore, selecting efficient, stable, and highly adaptable extraction equipment is a key factor in ensuring the economic performance of recycling production lines.
Centrifugal Extraction Technology

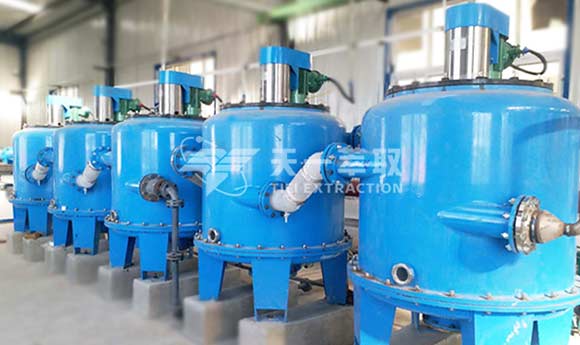

The CWL-M series centrifugal extractor, independently developed by Zhengzhou Tiei Extraction Technology Co., Ltd., is an advanced liquid-liquid extraction equipment specifically designed to address the above challenges. The equipment utilizes the centrifugal force generated by high-speed rotation to achieve rapid mixing and instantaneous separation of two phases (aqueous phase and organic phase), offering the following significant advantages:
1.High Mass Transfer Efficiency for More Complete Extraction
Under the action of centrifugal force, the contact area between the two phases is greatly increased. The mass transfer rate is significantly higher than that of gravity settling equipment, allowing the system to quickly reach extraction equilibrium within a very short residence time, effectively improving the recovery rate of copper and precious metals.
2.Rapid Phase Separation and Effective Emulsion Suppression
Waste PCB leach solutions often contain suspended particles and surfactant substances. The CWL-M centrifugal extractor, with its powerful centrifugal field, can rapidly break emulsions and ensure clear separation between the two phases, reducing organic phase losses and entrainment.
3.Wide Operating Flexibility for Complex Feed Solutions
By replacing the heavy-phase weir plate and adjusting the frequency conversion speed control, the equipment can flexibly adapt to different material systems with varying densities, viscosities, and phase flow ratios. Without large-scale modifications, it can meet the requirements of various leaching solution conditions, making it especially suitable for electronic waste recycling lines with fluctuating feed compositions.
4.Multi-Stage Counter-Current Configuration for Efficient Purification
By adopting a multi-stage counter-current extraction process, the copper recovery rate can be maintained at an extremely high level. At the same time, gold, silver, palladium, and other precious metals can be effectively enriched, providing a high-concentration and low-impurity enriched solution for subsequent refining processes.
5.Closed Operation and Environmentally Friendly Performance
The fully sealed structure of the equipment effectively prevents the volatilization of organic solvents, improves the working environment, and meets increasingly strict environmental protection regulations.
In industrial applications of copper extraction equipment, the CWL-M centrifugal extractor has already been applied in the copper extraction process of waste PCB leachates, achieving efficient recovery of metallic copper. Through a multi-stage counter-current extraction configuration, the copper extraction recovery rate can be stably maintained above 99%. After stripping, the loaded organic phase produces a high-concentration copper sulfate solution, which is then sent to the electrowinning process to produce cathode copper with a purity of over 99.95%. Meanwhile, the process also demonstrates excellent enrichment performance for precious metals such as gold, silver, platinum, and palladium in the leachate, laying a solid foundation for further extraction and recovery of precious metals.
Under the global trend toward a low-carbon circular economy, efficiently recovering valuable metals from waste PCBs is not only driven by economic benefits but also represents a responsibility for sustainable development. Choosing the CWL-M centrifugal extractor means choosing a technologically advanced, reliable, and stable extraction and separation partner.
If you are interested in extraction and recovery processes for waste PCBs or other copper- and precious-metal-containing waste materials, please feel free to contact us for more technical information or equipment solutions.
