With the rapid development of the new energy storage industry, the all-vanadium redox flow battery (VRFB) has emerged as a key technology for large-scale energy storage, owing to its long service life, high safety, and deep charge–discharge capability. As the core material of VRFB systems, the purity of vanadium electrolyte directly affects energy efficiency, cycle life, and operational stability. Therefore, how to efficiently and economically prepare high-purity vanadium electrolyte has become a critical technical bottleneck constraining the development of the industry.
Zhengzhou Tiei Extraction, leveraging its CWL-M series centrifugal extractor, provides an efficient, continuous, and controllable solution for the extraction and purification of vanadium electrolytes.

Technical Challenges in Vanadium Electrolyte Extraction and Purification

Vanadium electrolytes typically exist in the form of vanadyl sulfate (VOSO₄) or mixed vanadium ion solutions, and are highly sensitive to impurity content. The presence of impurity ions such as iron, chromium, sodium, and potassium can trigger side reactions, reduce coulombic efficiency, and even lead to battery failure.

Traditional purification methods, including chemical precipitation and ion exchange, suffer from drawbacks such as complex processing steps, high reagent consumption, and relatively low vanadium recovery rates. In contrast, solvent extraction has gradually become the mainstream technological approach for deep purification of vanadium electrolytes due to its high selectivity, superior separation efficiency, and suitability for continuous operation.

Technical Advantages of the CWL-M Centrifugal Extractor in Vanadium Electrolyte Extraction and Purification

In response to the stringent requirements for separation precision and process stability in vanadium electrolyte extraction and purification, the CWL-M centrifugal extractor demonstrates outstanding technical suitability:

1.Enhanced Mass Transfer for Higher Extraction Efficiency
The CWL-M centrifugal extractor generates a high-intensity centrifugal force field through high-speed rotation, enabling thorough micro-scale mixing between the vanadium-containing aqueous phase and extractants (such as P204, P507, and N1923). Compared with conventional mixer-settlers, mass transfer efficiency is improved by 5–8 times. Single-stage extraction efficiency exceeds 95%, while multi-stage counter-current operation achieves an overall efficiency of over 99%, ensuring effective vanadium enrichment and deep impurity removal.

2.Rapid Phase Separation to Prevent Emulsification and Entrainment
Vanadium electrolyte systems are prone to third-phase formation and emulsification, which can severely impair separation performance. The strong centrifugal field of the CWL-M centrifugal extractor enables rapid and clear phase separation within seconds. The entrainment rate of the organic phase is controlled below 0.1%, effectively ensuring solvent regeneration and product purity.

3.Fully Sealed Operation for High Product Cleanliness
The CWL-M centrifugal extractor adopts a fully sealed structural design, preventing air oxidation and external contamination. This makes it particularly suitable for the preparation of high-purity vanadium electrolytes that are sensitive to oxygen. Wetted parts can be constructed from high-grade stainless steel or fluoropolymer materials, offering excellent resistance to sulfuric acid corrosion and ensuring long-term stable operation.

4.Precise Control and Scalable Process Design
Key operating parameters—including rotational speed, phase flow ratio, and temperature—can be precisely controlled to accommodate varying vanadium concentrations and impurity profiles. The modular design supports linear scale-up from laboratory and pilot testing to full industrial production, providing a reliable pathway for large-scale manufacturing.

Process Flow for Vanadium Electrolyte Extraction and Purification

The extraction and purification of vanadium electrolyte via centrifugal solvent extraction typically involves the following steps:

1.Extraction Stage: The vanadium-containing solution and extractant are brought into multi-stage counter-current contact within the CWL-M centrifugal extractor. Vanadium ions are selectively transferred into the organic phase, while impurity ions remain in the raffinate and are removed.
2.Scrubbing Stage: The loaded organic phase is contacted with a dilute acid scrubbing solution to further remove co-extracted impurities.
3.Stripping Stage: A stripping agent is used to transfer vanadium ions from the organic phase back into the aqueous phase, producing a high-concentration, high-purity vanadium electrolyte.
4.Solvent Regeneration: The stripped organic phase is regenerated and recycled for reuse, reducing overall reagent consumption.

Application Case

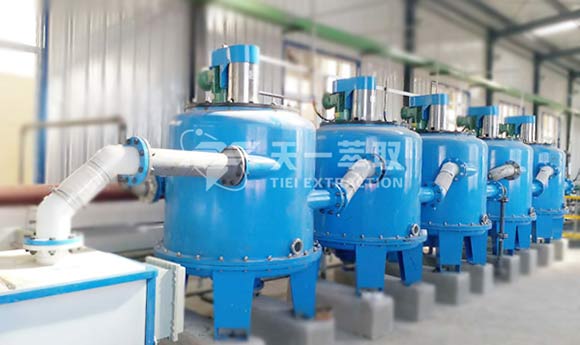

In a extraction purification process upgrade at a vanadium electrolyte production enterprise, the CWL-M centrifugal extractors are used to replace conventional mixer-settlers, delivering significant improvements:

Vanadium recovery rate increased from 92% to 98.5%
Iron impurity reduced from 50 ppm to below 5 ppm
Extractant consumption reduced by 35%
Equipment footprint reduced by 70%
Annual operating costs reduced by over 30%

With the rapid expansion of the vanadium redox flow battery (VRFB) energy storage market, demand for high-purity vanadium electrolytes will continue to grow. Zhengzhou Tiei Extraction is committed to leveraging advanced centrifugal extraction technology and extensive engineering experience to help vanadium electrolyte producers overcome purification bottlenecks and gain a competitive edge in the energy storage materials market.
