In the fields of coal coking, BTX (benzene, toluene, and xylene) production, and fine chemicals manufacturing, BP wastewater has long been a challenging issue for environmental engineers. High concentrations of phenols, aromatic amines, sulfur-containing organic compounds, and ammonia nitrogen make this wastewater particularly difficult to treat. With COD levels reaching tens of thousands or even hundreds of thousands of milligrams per liter, microorganisms struggle to survive, causing conventional biological treatment systems to fail repeatedly. Meanwhile, relying solely on advanced oxidation processes results in operating costs that many companies find difficult to bear.

Zhengzhou Tiei Extraction Technology Co., Ltd. offers a different solution: removing toxic organic compounds from wastewater rather than simply destroying them through oxidation. Through the application of the CWL-M Series Centrifugal Extractor, BP wastewater treatment can achieve the dual objectives of toxicity reduction and resource recovery, transforming environmental management from a cost center into a value-generating process.

Challenges in BP Wastewater Treatment

The main characteristics of BP wastewater determine the complexity of its treatment:

High Toxicity: Phenols and aromatic amines strongly inhibit or even kill microorganisms, making direct biological treatment extremely difficult.
High Organic Content: Chemical Oxygen Demand (COD) typically reaches tens of thousands of mg/L or higher.
Poor Biodegradability: Stable aromatic ring structures are difficult to break down biologically, with the BOD₅/COD ratio often below 0.2.
High Salinity and Corrosiveness: Stringent requirements are placed on the materials used for treatment equipment and pipelines.

Traditional treatment processes often face a difficult trade-off. Biological treatment requires substantial detoxification pretreatment before operation, while advanced oxidation processes involve high operating costs. Moreover, regardless of the method used, valuable organic compounds such as phenols are ultimately destroyed rather than recovered, resulting in a significant waste of potentially reusable resources.

Technological Breakthrough: Centrifugal Extraction for BP Wastewater Treatment

Zhengzhou Tiei Extraction has introduced proven liquid-liquid extraction technology into the field of BP wastewater treatment, developing an innovative process route that combines extraction-based detoxification with alkaline stripping for resource recovery.

Core Process Flow

1.Extraction Separation
BP wastewater and a specialized extractant are simultaneously fed into the CWL-M Centrifugal Extractor at a predetermined ratio. Inside the high-speed rotating drum, the two liquid phases achieve intensive and highly efficient contact. Organic compounds such as phenols and aromatic amines are rapidly transferred from the wastewater into the extractant phase. As a result, the organic content in the aqueous phase is significantly reduced, toxicity is substantially lowered, and the treated wastewater can safely enter downstream biological treatment systems.

2.Phase Separation
Under the action of centrifugal force, the mixed liquid undergoes rapid phase separation. The extractant phase, loaded with organic compounds, is discharged through the heavy-phase outlet, while the purified aqueous phase discharges through the light-phase outlet. The entire process requires only a few tens of seconds of residence time, delivering treatment efficiency far superior to that of conventional mixer-settlers.

3.Extractant Regeneration and Resource Recovery
The organic-loaded extractant is then sent to the stripping section, where it is mixed with an alkaline solution. Under alkaline conditions, phenolic compounds react to form sodium phenolate and transfer into the alkaline phase, producing a high-concentration sodium phenolate solution as a valuable product. Meanwhile, the extractant regains its extraction capacity and is recycled back to the extraction stage for continuous reuse.

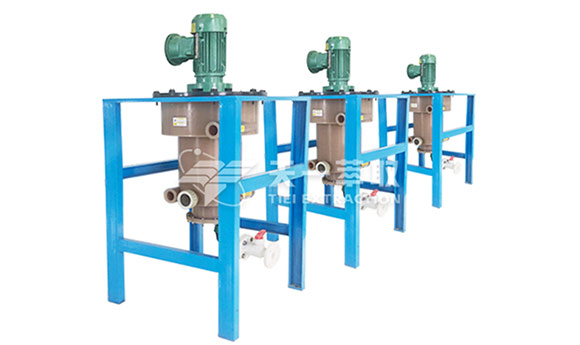

CWL-M Centrifugal Extractor

The CWL-M Series Centrifugal Extractor is one of Zhengzhou Tiei Extraction's flagship products. It has been specifically optimized for challenging industrial wastewater applications such as BP wastewater treatment.

1.Short Stage Residence Time Minimizes Emulsification Risk
The contact time between the two liquid phases inside the CWL-M centrifugal extractor is typically only 20–60 seconds, significantly shorter than the several minutes or even tens of minutes required in conventional mixer-settlers.
For BP wastewater systems that are prone to emulsification, this short residence time greatly reduces the risk of emulsion formation and ensures long-term stable operation.

2.Rapid Phase Separation and High Extraction Efficiency
Utilizing a powerful centrifugal force field, the CWL-M centrifugal extractor achieves rapid phase separation with a distinct interface and minimal entrainment loss. Single-stage extraction efficiency typically exceeds 95%, and single-stage or multi-stage counter-current extraction processes can be flexibly designed based on wastewater characteristics.

3.Reduced Investment and Operating Costs
Compact Footprint: A single unit occupies only a few square meters, reducing civil construction investment by more than 70% compared with traditional mixer-settler systems.
Lower Solvent Consumption: Due to highly efficient mass transfer, the phase ratio (extractant/wastewater) can be as low as 1:5 or even 1:10, significantly reducing both initial solvent inventory and ongoing solvent replenishment costs.
Low Energy Consumption: Advanced hydraulic design and precision dynamic balancing technology result in lower power consumption per unit of treated wastewater compared with similar equipment.

4.Corrosion Resistance and Strong Process Adaptability
To address the highly corrosive nature of BP wastewater, the CWL-M centrifugal extractor is available in a variety of construction materials, including 316L stainless steel, duplex atainless ateel, Hastelloy alloys, FEP (Fluorinated Ethylene Propylene, F46) Lining. These material options enable the equipment to meet a wide range of corrosion-resistance requirements.

5.Fully Enclosed Operation for Safety and Environmental Protection
The equipment operates within a fully sealed system, preventing the leakage of organic solvents and odorous gases. This improves workplace conditions and helps facilities comply with increasingly stringent safety and environmental regulations.

Application Case of CWL-M Centrifugal Extractor

A large coal chemical enterprise generates approximately 50,000 tons of BP wastewater annually, with a COD of up to 35,000 mg/L and a total phenol concentration of approximately 8,000 mg/L.
Previously, the company employed a treatment process consisting of oil separation + dissolved air flotation + advanced oxidation + A²/O biological treatment. The treatment cost exceeded RMB 40 per ton of wastewater, while the advanced oxidation stage consumed a substantial amount of chemicals.

After implementing the two-stage countercurrent centrifugal extraction process provided by Zhengzhou Tiei Extraction using the CWL-M Centrifugal Extractor:

Total phenol concentration in the treated wastewater was reduced to below 150 mg/L, COD removal efficiency exceeded 85%
The recovered sodium phenolate solution achieved industrial-grade purity, creating an annual economic value of approximately RMB 1.2 million
The downstream biological treatment system operated stably, reducing the overall treatment cost to approximately RMB 18 per ton of wastewater
The equipment operated continuously for 24 months with no significant decline in extraction efficiency

When dealing with highly toxic and poorly biodegradable industrial wastewaters such as BP wastewater, the principle of "recovery before destruction" is increasingly becoming an industry consensus. The CWL-M Centrifugal Extractor developed by Zhengzhou Tiei Extraction is built around highly efficient liquid-liquid extraction technology, integrating wastewater treatment with resource recovery. It not only helps enterprises meet environmental compliance requirements but also generates tangible economic returns.

If you are struggling with the challenges of BP wastewater treatment, it may be time to explore a new solution through centrifugal extraction technology.
