In the fields of fine chemicals, pharmaceutical intermediates, pesticide raw materials, and oil-based material purification, water washing, alkali washing, and acid washing are critical processes that directly determine product purity and yield. For many years, traditional reactor static settling processes have dominated most production lines due to their simple operating principles. However, with the continuous upgrading of production capacity and increasingly stringent environmental regulations, the disadvantages of reactors have gradually become bottlenecks restricting the competitiveness of enterprises: long batch production cycles, severe emulsification, material loss caused by phase entrainment, large footprint, and difficulties in achieving continuous operation.

The emergence of the CWL-M series centrifugal extractor from Zhengzhou Tiei Extraction Technology provides a completely new solution to these challenges. It is not simply an improvement of existing equipment, but a revolutionary reconstruction of the traditional process flow — replacing hours of static settling in reactors with rapid phase separation within seconds under a centrifugal force field.

From “Waiting for Settling” to “Continuous Flow”: The Transformation of Process Routes

In traditional water washing or alkali washing processes, materials and washing liquids are mixed and stirred in reactors, followed by natural gravity separation. Operators must rely on experience to identify the phase interface and discharge the heavy phase (washing wastewater) and light phase (product material) batch by batch. This process is not only inefficient but also highly vulnerable to emulsification caused by fluctuations in flow rate or changes in material properties. In severe cases, production may even need to be interrupted for residue removal.

The introduction of the CWL-M centrifugal extractor completely changes this process logic. The equipment integrates mixing, mass transfer, and phase separation within a single closed chamber. Materials and washing agents continuously enter the machine at a controlled ratio, where they are intensively mixed by the high-speed rotating drum. Subsequently, under a centrifugal force field thousands of times greater than gravity, the two phases are instantly separated according to their density differences and continuously discharged.

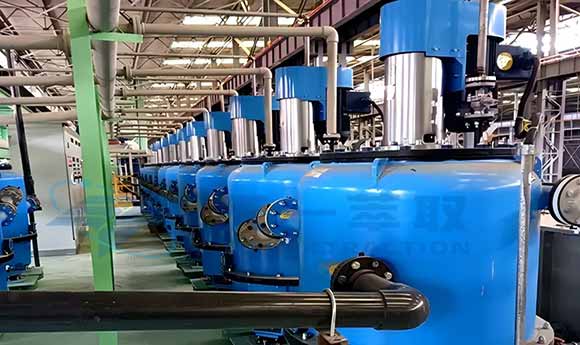

The direct benefit of this transformation is that water washing and alkali washing processes are upgraded from batch operations to continuous production lines. The system is particularly suitable for applications such as acid removal from pesticide raw materials, purification washing of pharmaceutical intermediates, and impurity removal from oil-based materials. The equipment also supports multi-stage series-connected counter-current washing modes, achieving higher purification levels with reduced washing liquid consumption.

Solving Two Major Industry Challenges: Emulsification and Phase Entrainment

For frontline production operators, emulsification and phase entrainment are among the most troublesome issues in reactors operations. Long-time intensive agitation of materials and washing liquids inside reactors can easily generate stable emulsions, making interfacial impurities difficult to settle. This not only causes product loss but also extends production cycles.

The operating principle of the CWL-M centrifugal extractor provides natural advantages in addressing these challenges. Since the two phases remain inside the equipment for only a very short period (measured in seconds), and the centrifugal force can reach thousands of times the gravitational field, this physically enhanced separation method can effectively break mild emulsification conditions while significantly reducing organic material entrainment in the heavy phase (washing water) and residual acids, alkalis, or salts in the light phase (target product). This means less product loss, lower solvent recovery energy consumption, and improved quality of downstream products.

Significant Improvements in Stability and Safety

Chemical production requires extremely high standards for equipment sealing performance and corrosion resistance.

The CWL-M series centrifugal extractor adopts an upper-suspended single-point support structure. The key advantage of this design is that there are no bearings or mechanical seals at the bottom of the equipment. The leakage risks caused by traditional shaft seal wear are completely eliminated. This structure is particularly suitable for fine chemical workshops with strict requirements for odor control, safety, and explosion prevention.

For highly corrosive media such as strong acids, strong alkalis, and chlorine-containing solutions, the equipment can be equipped with corrosion-resistant materials including perfluoropolymer materials (PTFE/PFA) or Hastelloy alloys, ensuring long-term stable operation under high-temperature and highly corrosive conditions.

In terms of safety and environmental protection, the CWL-M centrifugal extractor adopts a fully enclosed explosion-proof design, effectively reducing uncontrolled emissions of VOCs (volatile organic compounds). Under increasingly strict environmental regulations, it helps companies avoid compliance risks at the source. Meanwhile, its lower operating energy consumption compared with traditional mixer settlers provides significant long-term energy-saving benefits.

Automation and Flexible Process Integration

The CWL-M centrifugal extractor features a compact design and a well-organized structure. Its footprint is only a fraction of that required by traditional mixer settlers or large reactor systems, making it highly attractive for the renovation of existing plants and the construction of compact modern production lines.

More importantly, the equipment supports PLC intelligent control. Key parameters such as flow rate, rotational speed, and phase ratio can be remotely set and monitored in real time, freeing operators from repetitive tasks such as frequent discharge operations, interface observation, and manual valve switching.

Whether used as an independent washing unit or integrated with extraction and stripping processes to form a complete separation and purification system, the CWL-M centrifugal extractor demonstrates excellent process adaptability.

Conclusion

As the chemical industry moves from extensive production toward precision manufacturing and intelligent processing, the limitations of traditional reactors in washing operations are becoming increasingly apparent. The CWL-M centrifugal extractor is not merely a piece of equipment, but a carrier of a more efficient, continuous, safe, and clean process concept. It helps production enterprises eliminate batch-to-batch quality fluctuations, reduce solvent and material consumption, and significantly shorten production cycles.

If your plant is facing challenges such as difficult water washing separation, excessive product entrainment, or insufficient production capacity, please contact us. Our professional team will provide customized experimental data and equipment configuration solutions based on your specific materials and process requirements.
