In chemical production processes, the separation of xylene and water is a common and critical unit operation. As an important organic solvent and chemical raw material, xylene is widely used in coatings, paints, pesticides, pharmaceuticals, and other industries. However, during production and usage, xylene often forms mixtures with water, requiring effective separation treatment. Solvent extraction, as a mature technological route combined with advanced centrifugal extraction equipment, can achieve efficient and economical two-phase separation.
Challenges in Xylene–Water Separation
Xylene (a mixture of ortho-, meta-, and para-isomers) has limited solubility in water. In practical production, when xylene comes into contact with water, it tends to form emulsified systems. This phenomenon becomes more severe in the presence of surfactants or fine solid particles. Traditional separation methods such as gravity sedimentation have limitations, including slow phase separation, incomplete separation, and entrainment issues.
Working Principle of Solvent Extraction
Solvent extraction utilizes the difference in solubility of xylene in a specific extractant. Through sufficient contact between the extractant and the feed solution, xylene is transferred from the aqueous phase into the organic phase (extractant), followed by phase separation. The advantages of this method include:
Simple process with high operational flexibility
Excellent separation performance and high extraction efficiency
Large processing capacity, suitable for industrial production
Recyclable extractant with low operating cost
Technical Advantages of CWL-M Centrifugal Extractor
The CWL-M series centrifugal extractor is a new generation liquid–liquid extraction and separation equipment developed by Zhengzhou Tei Extraction Technology Co., Ltd. It demonstrates significant advantages in xylene–water separation applications:
1.Efficient Two-Phase Mass Transfer and Separation
The CWL-M centrifugal extractor first uses the turbine disk and impeller in the annular mixing zone to rapidly mix and disperse the light and heavy phases, achieving efficient mass transfer. Subsequently, inside the drum, the strong centrifugal force generated by high-speed rotation enables rapid clarification of the two phases and separate discharge. The separation performance is far superior to gravity sedimentation.
2.Emulsion Breaking Capability
Xylene–water systems are prone to forming emulsion layers in traditional extraction equipment, leading to separation difficulties. The CWL-M centrifugal extractor effectively disrupts the emulsion interface by precisely controlling mixing intensity and centrifugal separation force, ensuring clear phase separation and eliminating entrainment.
3.Continuous Operation
The CWL-M centrifugal extractor supports continuous feed, continuous extraction, and continuous separation, enabling full continuous operation. It can be easily integrated into automated production lines, significantly improving production efficiency.
4.High Throughput and Low Energy Consumption
Compared with traditional extraction equipment, the CWL-M centrifugal extractor offers higher processing capacity per unit volume and requires a smaller footprint. Meanwhile, its optimized energy system significantly reduces power consumption while maintaining high separation efficiency.
5.Multi-Stage Countercurrent Extraction
The CWL-M centrifugal extractor can be configured into a multi-stage countercurrent extraction system. In applications such as xylene recovery and wastewater treatment, it achieves higher extraction rates and lower raffinate concentrations, meeting strict environmental discharge requirements.
Comparison with Traditional Equipment
| Comparison Item | Mixer-settler/Extraction Column | CWL-M Centrifugal Extractor |
| Separation method | Gravity settling | Centrifugal force separation |
| Separation speed | Slow, long residence time required | Fast, completed within seconds |
| Separation performance | Prone to entrainment | Complete separation, no entrainment |
| Emulsion resistance | Weak | Strong |
| Footprint | Large | Small |
| Operational flexibility | Low | High |
| Maintenance cost | Higher | Lower |
Practical Application Case

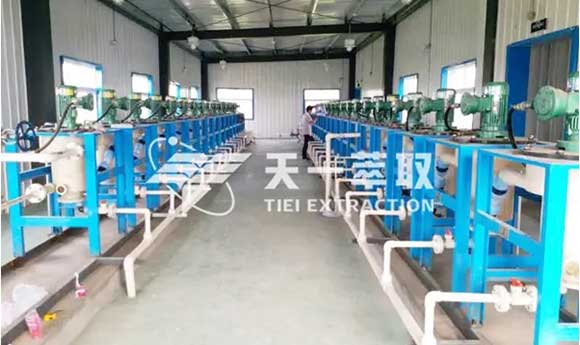

The CWL-M centrifugal extractor has been successfully applied in xylene recovery and wastewater treatment projects in multiple chemical enterprises. In a fine chemical company application:
Extraction efficiency reaches over 99%
Xylene content in raffinate is below 100 ppm
Significant reduction in extractant loss
Stable continuous operation with long maintenance intervals
Overall operating cost reduced by more than 30% compared with traditional processes
The CWL-M centrifugal extractor demonstrates outstanding performance advantages in xylene–water separation applications due to its efficient centrifugal separation technology. Its features—large processing capacity, excellent separation performance, low energy consumption, and continuous operation—make it an ideal choice for organic phase and aqueous phase separation in the chemical industry.
Zhengzhou Tiei Extraction Technology Co., Ltd. is committed to providing high-quality liquid–liquid extraction and separation solutions for global customers. For more information about the CWL-M centrifugal extractor, please feel free to contact us.
