N-Methyl-2-pyrrolidone (NMP), as an excellent polar solvent, is widely used in high-end manufacturing industries such as lithium batteries, semiconductors, and polymer materials. However, the large volume of NMP-containing wastewater generated after its use not only creates environmental pressure but also contains significant resource recovery value.

Traditional distillation processes are characterized by high energy consumption and substantial capital investment. The emergence of the CWL-M Centrifugal Extractor has opened up a new technological pathway for the high-value recovery of NMP wastewater.

NMP Wastewater Recovery Process Using CWL-M Centrifugal Extractor

Process Flow
The recovery of NMP wastewater using the CWL-M Centrifugal Extractor involves the following key process steps:

NMP-containing wastewater → Pretreatment (pH adjustment / filtration) → Centrifugal extraction (counter-current contact with extractant) → Loaded extractant → Stripping / distillation regeneration → High-purity NMP product

Raffinate phase (purified water) → Discharge in compliance with environmental standards or reuse

Key Equipment: CWL-M Centrifugal Extractor
The CWL-M Centrifugal Extractor, independently developed by Zhengzhou Tiei Extraction, adopts an annular-gap high-speed centrifugal structure. By utilizing the density difference between two liquid phases in a high-speed rotating centrifugal force field, the equipment achieves efficient mixing and mass transfer as well as rapid separation.
The equipment integrates the mixing chamber, rotor drum, and housing into a compact design, ensuring stable operation, a small footprint, and high processing efficiency.

Core Advantages of Centrifugal Extraction Technology in NMP Recovery

Compared with traditional distillation processes or packed-column extraction systems, the CWL-M Centrifugal Extractor demonstrates the following significant advantages in NMP wastewater treatment:

1.Ultra-High Extraction Efficiency with Recovery Rates Exceeding 98%
The high-speed centrifugal force (up to hundreds of times the force of gravity) enables thorough contact between the extractant and NMP-containing wastewater, resulting in extremely high mass transfer efficiency.
The stage efficiency can reach more than 95%, significantly higher than that of conventional extraction columns (60%–80%). As a result, NMP recovery rates can easily exceed 98%, substantially increasing resource recovery benefits.

2.Extremely Low Solvent Entrainment, Reducing Downstream Processing Burden
The unique drum design ensures clear phase separation, with extractant entrainment controlled below 50 ppm.
The residual NMP concentration in the purified water is extremely low, which not only reduces extractant losses but also decreases the load on subsequent distillation or biological treatment processes.

3.Solvent Recycling Greatly Reduces Operating Costs
The equipment operates in a fully enclosed system, minimizing extractant evaporation losses.
The loaded extractant can be regenerated through stripping or short-path distillation, allowing repeated solvent recycling. The treatment cost per ton of wastewater is only one-third to one-half that of traditional distillation processes.

4.Small Footprint and Flexible Configuration
The processing capacity of a single CWL-M Centrifugal Extractor ranges from dozens of liters to hundreds of cubic meters per hour, while occupying only a few square meters of floor space.
Its modular design allows flexible series or parallel configurations to form multi-stage counter-current extraction systems according to wastewater concentration and treatment capacity requirements, making on-site installation simple and convenient.

5.Closed Operation for Safety and Environmental Protection
The fully enclosed structure eliminates the risk of NMP and organic extractant leakage, meeting the stringent explosion-proof and environmental protection requirements of the chemical and lithium battery industries.
The system operates without odor emissions, significantly improving the working environment.

6.High Degree of Automation and Easy Maintenance
Equipped with a variable-frequency control system, the centrifugal extractor can automatically adjust rotational speed and extraction stages according to feed flow rate and concentration.
With no complicated internal components, few wearing parts, and convenient disassembly and cleaning, the equipment offers long maintenance intervals and low maintenance costs.

Application Case and Economic Benefits

Taking a lithium battery separator manufacturing enterprise as an example, its NMP wastewater had an NMP concentration of approximately 15%, with a daily treatment capacity of 200 tons.

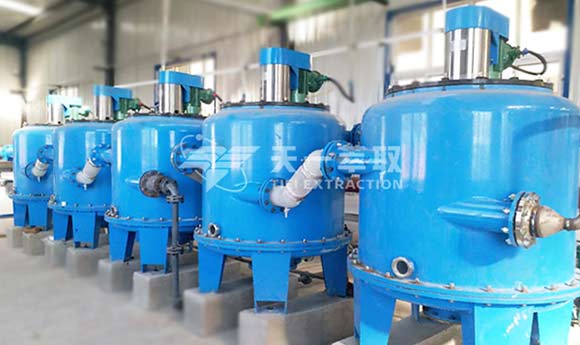

After adopting a four-stage counter-current extraction process using CWL-M Centrifugal Extractors:

NMP recovery increased from 85% with traditional distillation to 98.5%;
Comprehensive energy consumption per ton of wastewater decreased by 60%;
More than 1,000 tons of high-purity NMP were recovered annually, generating additional direct economic benefits exceeding RMB 15 million;
The COD of the extracted wastewater was reduced by more than 95%, allowing it to be directly sent to a biological treatment system or membrane reuse system.

Conclusion

With the continuous expansion of the lithium battery and electronic chemicals industries, the efficient recovery and utilization of NMP wastewater has become a key strategy for reducing costs, improving efficiency, and achieving sustainable development. The CWL-M Centrifugal Extractor, developed by Zhengzhou Tiei Extraction, is becoming a disruptive solution for high-value NMP wastewater recovery due to its outstanding advantages, including high recovery efficiency, low energy consumption, enclosed and safe operation, and compact footprint.

If you are seeking an NMP recovery solution that is more economical than distillation and more efficient than conventional extraction technologies, please contact Zhengzhou Tiei Extraction Technology Co., Ltd.
