In industries such as pharmaceuticals, pesticides, polyurethane synthetic leather, aramid fiber production, and electronic chemicals, N,N-Dimethylformamide (DMF) is widely used as an important solvent. However, DMF is completely miscible with water in any proportion and has a high boiling point of 153°C (307.4°F). As a result, conventional distillation-based recovery processes are characterized by extremely high energy consumption and often suffer from fouling, equipment corrosion, and secondary pollution.

In many industrial applications, DMF-containing wastewater exhibits a COD concentration ranging from tens of thousands to over one hundred thousand mg/L, while its biodegradability is extremely poor, with a BOD/COD ratio often below 0.2. Direct discharge into biological treatment systems can lead to massive microbial inhibition or death, whereas outsourcing wastewater disposal significantly increases operating costs.

Three Major Challenges of DMF Wastewater Treatment

1.Difficult Separation and High Energy Consumption
Although DMF and water do not form an azeotrope, their separation remains challenging due to DMF's high boiling point and complete miscibility with water. Traditional distillation requires the evaporation of large volumes of water, typically consuming 5–8 tons of steam to recover 1 ton of DMF. This results in substantial steam, electricity, and cooling water costs. Furthermore, DMF may decompose at elevated temperatures, generating odorous compounds such as dimethylamine.

2.Impurity Accumulation and Reduced Solvent Quality
Repeated distillation causes impurities and heavy residues to accumulate in the reboiler. As a result, recovered DMF often exhibits a yellowish color and amine odor, with purity levels typically limited to 85–90%. Such solvent quality may fail to meet the requirements of high-value manufacturing processes, forcing companies into a costly cycle of purchasing fresh solvent while being unable to fully reuse recovered DMF.

3.Environmental Compliance Pressure and Rising Disposal Costs
DMF wastewater that is not effectively recovered contains extremely high COD levels, making environmental compliance increasingly difficult. Third-party disposal costs can reach thousands of dollars per ton, while establishing an in-house biological treatment system requires substantial investment and technical expertise. Achieving discharge standards under these conditions remains a significant challenge for many manufacturers.

Faced with these challenges, enterprises are seeking technologies capable of efficiently removing DMF, recovering high-purity solvent under mild operating conditions, and significantly reducing operating costs. Zhengzhou Tiei Extraction offers an effective solution--the CWL-M Centrifugal Extractor combined with a proprietary solvent extraction system.

By utilizing high-efficiency liquid-liquid extraction technology, the CWL-M Centrifugal Extractor enables rapid mass transfer and phase separation under ambient or near-ambient temperatures, allowing valuable DMF to be selectively extracted from wastewater. Compared with conventional distillation, this process can dramatically reduce energy consumption, improve solvent recovery efficiency, and lower overall wastewater treatment costs while helping enterprises meet increasingly stringent environmental regulations.

Three-Step Closed-Loop Process: Extracting DMF and Delivering Clean Water

Unlike distillation, centrifugal extraction utilizes the principle of physical distribution (liquid-liquid extraction), completely bypassing the evaporation process. The entire process operates continuously in a closed system.

1.Precise "Capture" at Ambient Temperature
DMF-containing wastewater and an extractant with high selectivity for DMF (such as chloroform, methylene chloride, or a composite extractant) are simultaneously pumped into the CWL-M Centrifugal Extractor at an optimized ratio. Inside the high-speed rotating drum, the two phases are instantly sheared into micron-sized droplets, increasing the mass transfer area by hundreds of times. Within a few seconds, DMF molecules are transferred from the aqueous phase to the organic phase, reducing the residual DMF concentration in the water phase to an extremely low level.

2.Instant "Detoxification" and Extractant Regeneration
The DMF-loaded organic phase enters the stripping unit and comes into contact with a small amount of hot pure water or dilute alkaline solution. The DMF is then "driven" back into the aqueous phase, producing a high-concentration DMF solution containing 30%–50% DMF. Meanwhile, the extractant regains its activity and is recycled for reuse, with a single-pass loss of less than 0.5%.

3.Low-Cost Purification and Wastewater Compliance
The high-concentration DMF solution only requires simple vacuum distillation to obtain finished DMF with a purity of more than 99%, which can be directly reused in the production line. Meanwhile, the COD of the stripped raffinate decreases by 85%–95%, and the BOD/COD ratio increases to above 0.4, allowing it to easily enter the subsequent biological treatment system and meet discharge standards.

Why Is the Tiei Extraction CWL-M Centrifugal Extractor the Preferred Choice for DMF Wastewater Treatment?

1.Free from Azeotropic Constraints, Achieving Both High Recovery Rate and High Purity: Physical extraction is not limited by azeotropic restrictions. The DMF recovery rate is generally greater than 98%, and the product purity is ≥99.5%, truly turning waste liquid into reusable solvent.
2.Dramatically Reduced Energy Consumption: The process operates at ambient temperature, and the main power consumption comes only from the motor drive. Power consumption is only 8–15 kWh per ton of wastewater treated. The overall operating cost is 60%–75% lower than that of distillation. Based on an annual treatment capacity of 50,000 tons of DMF wastewater, annual steam cost savings can reach RMB 2–4 million.
3.Fully Enclosed, Odor-Free and Leak-Free: The fully sealed structure eliminates the dimethylamine odor generated by the thermal decomposition of DMF. At the same time, extractant evaporation loss is extremely low, significantly improving the workshop environment.
4.Anti-Clogging and Corrosion-Resistant for Worry-Free Continuous Operation: The equipment features smooth flow channels with no dead corners. The rotating drum and housing are made of fluoropolymer materials or duplex stainless steel, enabling resistance to salts, chloride ions, and acid-alkali corrosion in DMF wastewater. The equipment can operate for tens of thousands of hours without clogging or maintenance.
5.Integrated Intelligence with Unattended Operation: Equipped with an integrated PLC automatic control system, flow rate, rotational speed, and phase ratio can be set with one click. The system automatically adapts to fluctuations in wastewater quality, reducing manual intervention by 80%.

Application Cases

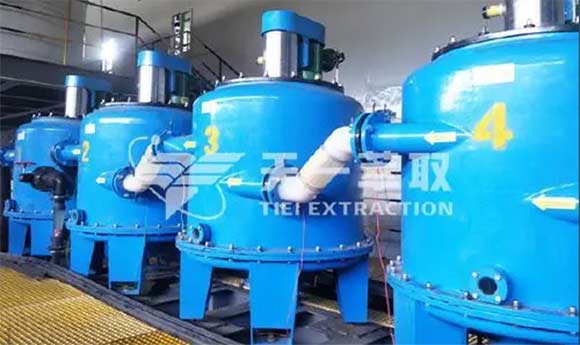

An aramid fiber enterprise (DMF content: 45%, containing 5%–10% calcium chloride; the distillation column became blocked every week): Using a CWL-250M Centrifugal Extractor with three-stage counter-current extraction, the DMF recovery rate reached 99.92% and the purity reached 99.5%. The equipment operated continuously for three months without any blockage.

A synthetic leather factory (DMF wastewater flow rate: 15 m³/h, concentration: 12%): Previously, a five-effect distillation system was used, with steam costs accounting for a major portion of operating expenses. After using centrifugal extraction (four-stage counter-current extraction + one-stage stripping), overall energy consumption was reduced by 62%, the DMF recovery rate increased from 88% to 98.7%, and approximately 500 tons of additional DMF were recovered annually, resulting in significantly improved economic benefits.

Every ton of high-concentration DMF wastewater contains solvent value worth hundreds or even thousands of yuan. With the golden combination of “Extraction + Stripping + Distillation,” Zhengzhou Tiei Extraction 's CWL-M Centrifugal Extractor helps you unlock this “solvent gold mine.” Whether you are from the aramid fiber, polyimide, pharmaceutical intermediate, or synthetic leather industry, we can provide one-stop services ranging from laboratory-scale testing to industrial-scale installations.
