The electroplating industry is one of the major sources of heavy metal wastewater discharge. Chromium-containing wastewater, especially wastewater containing hexavalent chromium (Cr⁶⁺), is highly toxic and hazardous, and is classified as a key regulated toxic pollutant. Most electroplating enterprises discharge 200–300 tons of chromium-containing wastewater per day. Traditional chemical precipitation methods suffer from major drawbacks, including large sludge generation, low chromium recovery rates (only around 50%), high risk of secondary pollution, and high operating costs.

The CWL-M Centrifugal Extractor developed by Zhengzhou Tiei Extraction offers a clean, efficient, and profitable industrial solution for electroplating chromium-containing wastewater treatment, leveraging advantages such as high-efficiency extraction, corrosion-resistant stable operation, and valuable resource recovery. It helps enterprises achieve both environmental compliance and resource profitability.

Electroplating Chromium Wastewater: Complex Composition and Major Treatment Challenges

Chromium in wastewater mainly exists in the forms of Cr⁶⁺ (highly toxic) and Cr³⁺, accompanied by impurity ions such as iron, zinc, and copper. The wastewater system is strongly acidic (pH 1–4), which places extremely high demands on equipment corrosion resistance.

Major Limitations of Traditional Treatment Technologies

1.Chemical Precipitation Method: Large consumption of chemical reagents, generation of large amounts of chromium-containing hazardous sludge, high disposal costs, chromium recovery rate of only about 50%, and severe waste of valuable chromium resources.
2.Ion Exchange Method: Resins are easily contaminated and require frequent regeneration. This method is only suitable for low-concentration, small-flow wastewater and is difficult to apply to industrial-scale wastewater treatment.
3.Electrolysis Method: High energy consumption and limited treatment capacity make it unable to meet the requirements of continuous large-scale industrial production.
4.Common Industry Pain Points: Chromium resources cannot be effectively recovered, wastewater treatment costs remain high, and environmental compliance pressure continues to increase.

With the growing awareness of resource recycling and sustainability, the industry urgently needs a high-efficiency, low-energy-consumption, and recyclable industrial treatment technology for chromium-containing wastewater.

CWL-M Centrifugal Extractor: A Revolutionary Solution for Electroplating Chromium Wastewater Treatment

The CWL-M Series Centrifugal Extractor developed by Zhengzhou Tiei Extraction applies liquid-liquid centrifugal extraction technology to chromium-containing wastewater treatment, completely overcoming the limitations of traditional processes while fully meeting the industrialized and continuous treatment requirements of electroplating enterprises.

1.Strong Corrosion-Resistant Design: Stable Operation in Highly Acidic Environments
Core wetted parts are made of 316L stainless steel combined with fluoroplastic composite materials, with optional Hastelloy alloy configuration
Resistant to the full pH range of 0–14, ensuring leak-free and corrosion-free operation for continuous 24-hour stable performance
Especially suitable for the highly acidic conditions of electroplating wastewater with pH 1–4, significantly extending equipment service life

2.High-Efficiency Extraction and Rapid Separation: Chromium Recovery Rate ＞96%
High-speed rotating drum (1400–2800 rpm) generates hundreds of times gravitational force, with phase contact time of only 15–30 seconds
Mass transfer efficiency is 5–8 times higher than traditional mixer settlers
Chromium extraction efficiency remains stable above 96%
Treated effluent Cr⁶⁺ concentration is lower than 0.4 mg/L, far exceeding national discharge standards

3.Fully Closed-Loop Resource Recovery: Turning Waste into Valuable Resources
The system adopts a fully enclosed process flow of: Pretreatment → Multi-stage Extraction → Washing → Stripping → Solvent Regeneration
Specialized amine extractants (such as N503) are used, with solvent loss rate below 0.05%
Stripping process produces high-concentration chromium salt solution that can be directly reused in electroplating production lines
The recovered chromium salt value per ton of wastewater is considerable, significantly offsetting or even exceeding treatment costs

4.Flexible Adaptation for Industrialized and Large-Scale Processing
Modular design with large single-unit processing capacity
Multiple units can be connected in series to form a counter-current extraction system
Easily meets the continuous, large-scale, and industrial chromium wastewater treatment requirements of electroplating enterprises
Footprint is only 1/5 to 1/3 of traditional treatment processes, reducing infrastructure investment costs substantially

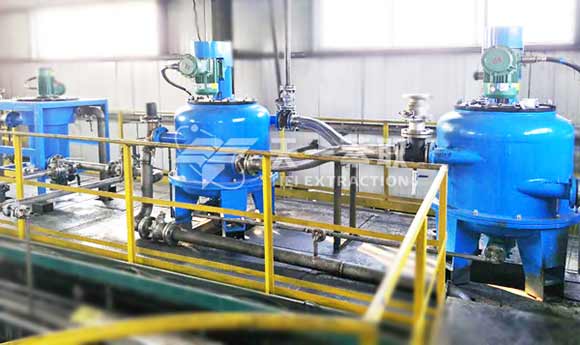

Process Flow for Chromium Resource Recovery Using the CWL-M Centrifugal Extractor (Fully Enclosed Counter-Current Extraction System)

1.Pretreatment: Adjust the pH to 2–3 and perform precision filtration to remove suspended solids.
2.Multi-Stage Counter-Current Extraction: Wastewater and extractant enter the CWL-M Centrifugal Extractor at a controlled ratio, allowing Cr⁶⁺ to rapidly transfer into the organic phase.
3.Washing and Impurity Removal: The loaded organic phase is washed with dilute sulfuric acid to remove impurity ions.
4.Stripping and Regeneration: Sodium hydroxide is used for stripping to obtain a high-purity chromium salt solution, while the extractant is regenerated and recycled for continuous reuse.
5.Compliant Effluent Discharge: The raffinate phase can be directly discharged or reused, with Cr⁶⁺ concentration consistently maintained below 0.4 mg/L.

At present, the electroplating industry is accelerating its green transformation, and the efficient treatment and resource recovery of chromium-containing wastewater have become core competitive advantages for enterprises. The CWL-M Centrifugal Extractor effectively solves the key challenges of electroplating chromium wastewater treatment through its core advantages of high-efficiency extraction, corrosion-resistant reliability, and valuable resource recovery. It not only helps enterprises achieve environmental compliance but also generates additional economic benefits through chromium recovery, providing strong technical support for the sustainable development of the electroplating industry.
