As global investment in superconducting material research and development continues to increase, niobium-titanium (Nb-Ti) alloy, currently the only superconducting material that has achieved large-scale commercial application, is entering a period of rapidly growing demand. From MRI medical equipment and particle accelerators to magnetic levitation transportation systems, Nb-Ti alloy has become an indispensable material in high-end manufacturing due to its excellent mechanical properties, high-temperature resistance, and corrosion resistance. However, the production of Nb-Ti alloy relies on the extraction of niobium metal. Since niobium and tantalum are closely associated in ores and exhibit highly similar chemical properties, their separation is extremely difficult, making it a key bottleneck restricting capacity expansion throughout the industry chain.
Tantalum-Niobium Separation: A Tough Challenge in Hydrometallurgy
Tantalum and niobium belong to the same group of elements and have similar ionic radii and highly comparable chemical behaviors. As a result, traditional physical beneficiation methods are unable to achieve effective separation. At present, the hydrometallurgical route is widely adopted in industry, among which solvent extraction has become the mainstream technology for tantalum-niobium separation due to its high separation efficiency, large processing capacity, and low energy consumption.
In the tantalum-niobium extraction process, fluoride-containing systems are typically employed. By utilizing the differences in the distribution coefficients of tantalum and niobium in specific extractants, selective separation can be achieved. However, traditional extraction equipment often suffers from inadequate mixing of the two phases, difficult phase separation, and severe solvent entrainment, which directly affect the purity and recovery rate of tantalum and niobium products.

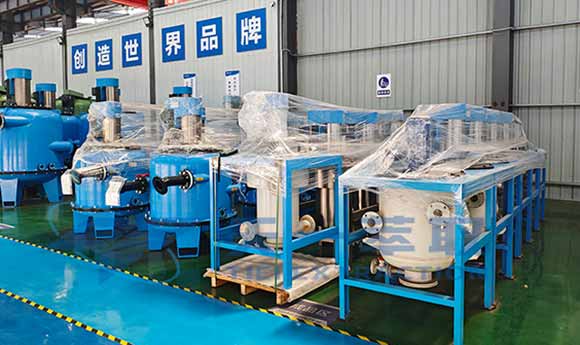

CWL-M Centrifugal Extractor: A Powerful Tool for Efficient Tantalum-Niobium Separation
To address the technical challenges of tantalum-niobium extraction and separation, the CWL-M Series Centrifugal Extractor independently developed by Zhengzhou Tiei Extraction Technology Co., Ltd. provides the hydrometallurgical tantalum-niobium industry with an efficient, energy-saving, and automated solution.
The process flow for tantalum-niobium separation using the CWL-M Centrifugal Extractor is as follows:
- Slurry Preparation and Digestion: After acid digestion of tantalum-niobium ore, a fluoride solution containing tantalum and niobium is obtained.
- Extraction Separation: The feed solution and organic extractant are introduced into the CWL-M Centrifugal Extractor at a specified ratio. By utilizing the differences in the distribution coefficients of tantalum and niobium between the organic phase and the aqueous phase, selective extraction is achieved.
- Scrubbing and Stripping: The loaded organic phase is scrubbed to remove impurities, followed by separate stripping processes for tantalum and niobium, producing high-purity tantalum solution and niobium solution.
- Post-Treatment: The stripping solutions undergo precipitation, calcination, and other downstream processes to ultimately produce high-purity tantalum pentoxide (Ta₂O₅) and niobium pentoxide (Nb₂O₅) products.
Core Advantages of the CWL-M Centrifugal Extractor
1.Metal Extraction Efficiency Up to 99.9%
Under the action of high-speed centrifugal force, the two phases achieve more thorough contact, significantly enhancing mass transfer efficiency. This results in more complete tantalum-niobium separation and substantially improved metal recovery rates.
2.Simplified Process Flow and Easy Operation
The CWL-M Centrifugal Extractor features a compact structure and enables continuous completion of extraction, scrubbing, and stripping processes. Its high degree of automation reduces manual intervention and operational complexity.
3.Stable Quality of Stripping Solutions
With clear phase separation and precise phase ratio control, the CWL-M Centrifugal Extractor produces stripping solutions with high purity and low impurity levels, flexibly meeting various production standards and requirements.
4.Low Solvent Residue and Reduced Environmental Burden
Its highly efficient phase separation technology significantly reduces organic solvent entrainment in the aqueous phase, minimizing the load on downstream wastewater treatment systems and supporting the development of greener chemical processing operations.
5.Small Footprint and Flexible Processing Capacity
The CWL-M Centrifugal Extractor adopts a modular design. A single unit occupies less than 2 square meters of floor space, while its processing capacity can be flexibly adjusted according to production requirements, making it suitable for production lines of various scales.
As the applications of niobium-titanium alloys continue to expand across strategic sectors such as healthcare, energy, and transportation, the market demand for high-purity niobium products is growing rapidly. Leveraging years of expertise in liquid-liquid extraction and separation technologies, Zhengzhou Tiei Extraction Technology Co., Ltd. provides tantalum-niobium smelting enterprises with comprehensive equipment-integrated solutions centered on the CWL-M Centrifugal Extractor, helping the industry overcome separation technology bottlenecks and achieve higher product quality, greater efficiency, and sustainable growth.
