During the production of active pharmaceutical ingredients (APIs), solvent extraction has always been a critical step that determines product yield, purity, and manufacturing cost. Traditional extraction columns and mixer-settlers have dominated the industry for decades. However, as the global pharmaceutical industry faces rapidly increasing demands for continuous manufacturing, green chemistry, and process agility, API manufacturers are collectively facing a key question: Can existing extraction processes support future competitive challenges?

The CWL-M series centrifugal extractor developed by Zhengzhou Tiei Extraction Technology Co., Ltd. is introducing a measurable and progressive upgrade pathway for API extraction through the innovative concept of “equipment as process.” This pathway is not simply an equipment replacement, but a three-level evolution—from single-stage efficiency optimization, to multi-stage continuous counter-current integration, and finally to intelligent control across the entire process chain.

From “Gravity Settling” to “High-Gravity Field” — Using High-Speed Centrifugal Force to Overcome Emulsification and Entrapment Challenges

Many API extraction processes have long been troubled by issues such as small density differences between two phases, easy emulsification, and accumulation of interfacial impurities. Traditional mixer-settlers rely on gravity settling for phase separation. When handling such feed systems, they often require several hours of static settling or even the addition of demulsifiers. This not only extends the production cycle but also introduces additional risks of impurity contamination.

The technological foundation of the CWL-M centrifugal extractor lies in the utilization of centrifugal force generated by high-speed rotation. Through a high-speed rotating drum, the equipment creates a centrifugal field hundreds of times stronger than gravity, compressing the two-phase separation time from hours to seconds. This fundamental improvement delivers the following direct process benefits:

Second-Level Separation, Completely Transforming the Time Scale: After entering the rotating drum, the two-phase mixture undergoes instant separation and discharge under the powerful centrifugal field. The residence time is reduced from hours to only a few seconds, significantly minimizing the degradation risk of heat-sensitive APIs.

Significantly Enhanced Emulsion Handling Capability: For easily emulsified systems such as cephalosporins, erythromycin, and fat-soluble vitamins, the CWL-M centrifugal extractor can achieve clear phase separation without the addition of demulsifiers. Single-stage extraction yield can generally be improved by 3%–8%.

Exponential Reduction in Phase Entrapment: The entrainment between heavy and light phases can be controlled below 0.5%, significantly reducing the load on subsequent washing, stripping, and solvent recovery sections, while lowering solvent consumption.

This stage represents the optimal entry point for most API manufacturers adopting centrifugal extraction. Without changing existing formulations or process routes, companies can upgrade the separation method from gravity settling to high-speed centrifugal separation and immediately achieve improvements in yield and product quality. Meanwhile, equipment footprint can be reduced by approximately 70%, making it particularly suitable for retrofit projects where existing plant space is limited.

From “Single-Stage Extraction” to “Multi-Stage Counter-Current Continuous Processing” — Enabling Continuous Manufacturing Through High-Speed Centrifugal Force

When single-stage extraction can no longer meet high-purity requirements (such as chiral purification or extraction of active components from high-value natural products), or when excessive solvent consumption affects production economics, process upgrading naturally progresses into the stage of multi-stage counter-current extraction.

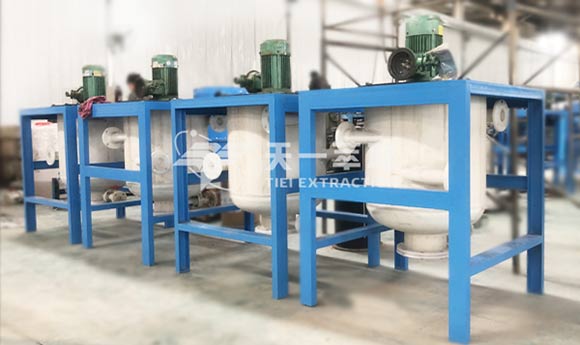

The modular series connection design of the CWL-M centrifugal extractor enables the rapid construction of 2–10 stage counter-current extraction or washing systems through a “building block” approach. Each stage independently utilizes high-speed centrifugal force for mixing and separation. Compared with traditional column-based equipment, it provides significant engineering advantages:

True and Controllable Stage Efficiency Without Axial Back-Mixing: Each stage operates as an independent drive unit, eliminating axial back-mixing commonly found in column equipment. The theoretical stage efficiency closely matches actual performance, with minimal scale-up effects. From laboratory trials to industrial production, the process can be directly and linearly scaled up.

Independent Adjustment of Phase Ratio and Flow Rate: In a multi-stage counter-current system, the phase ratio (solvent/feed ratio) and flow rate of each stage can be independently adjusted according to actual process requirements. This is especially suitable for difficult extraction systems with significantly unbalanced phase ratios, such as the extraction of certain antibiotics.

Rapid Start-Up, Shutdown, and Product Changeover: Because the CWL-M centrifugal extractor has an extremely small liquid holdup volume (only 1/5–1/10 of traditional mixer-settlers), cleaning time is significantly shortened during product changeover. Solvent consumption for cleaning is reduced, greatly improving the flexibility of multi-product production lines.

Through multi-stage counter-current integration, manufacturers can continuously improve extraction purity and yield without increasing single-unit equipment size. This enables a true continuous manufacturing model aligned with FDA and EMA development trends, while providing clear data support for GMP certification and process validation.

From “Unit Operation” to “Intelligent Process Closed Loop” — Integration of High-Speed Centrifugal Force with Process Analytical Technology (PAT)

Under the current global trend of Pharmaceutical Industry 4.0, the extraction unit is no longer an isolated physical operation, but a key component within the Quality by Design (QbD) framework. The CWL-M centrifugal extractor has been designed with comprehensive interfaces for intelligent process upgrades:

Real-Time Monitoring of Rotational Speed and Torque: The intensity of the centrifugal field generated by high-speed rotation can be directly controlled through rotational speed adjustment. Combined with torque variations, the system can indirectly evaluate feed viscosity or emulsification conditions, providing real-time physical signals for Process Analytical Technology (PAT).

Automatic Phase Ratio Control and Liquid Discharge Feedback: Equipped with heavy-phase and light-phase weirs, together with level sensors, the system can automatically adjust back pressure according to feed fluctuations, ensuring stable phase interface control and preventing separation failures caused by variations in upstream feed conditions.

Data Integration and Remote Operation & Maintenance: Parameters such as vibration, temperature, and current from each equipment unit can be integrated into DCS or SCADA systems, enabling predictive maintenance and batch-to-batch consistency analysis, helping manufacturers establish a complete digital process database.

The value of this upgrade level lies in transforming “high-speed centrifugal force” from a purely physical separation tool into a real-time responsive unit for process optimization. Manufacturers are no longer passively accepting separation results but can actively regulate the centrifugal field to adapt to raw material fluctuations, thereby significantly reducing the risk of batch failure.

Zhengzhou Tiei Extraction CWL-M Series Centrifugal Extractor: Advancing API Extraction Toward High Efficiency and Intelligent Manufacturing

The CWL-M series centrifugal extractor from Zhengzhou Tiei Extraction is specifically designed for API extraction applications in the pharmaceutical industry. With its core technologies of second-level separation, fully enclosed operation, and continuous automation, it helps pharmaceutical manufacturers overcome traditional extraction limitations and achieve large-scale production with higher yield, higher purity, and improved quality consistency.
